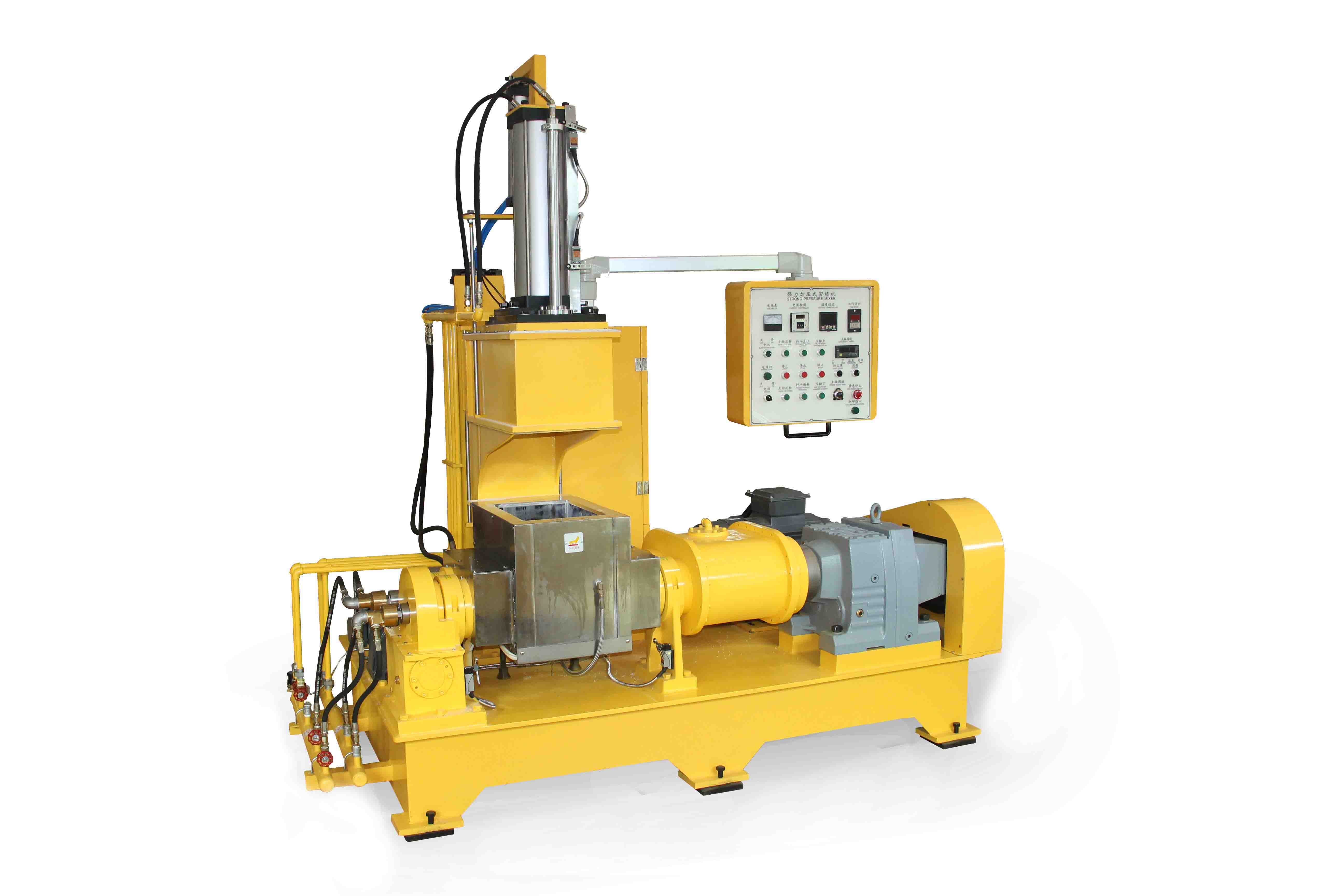

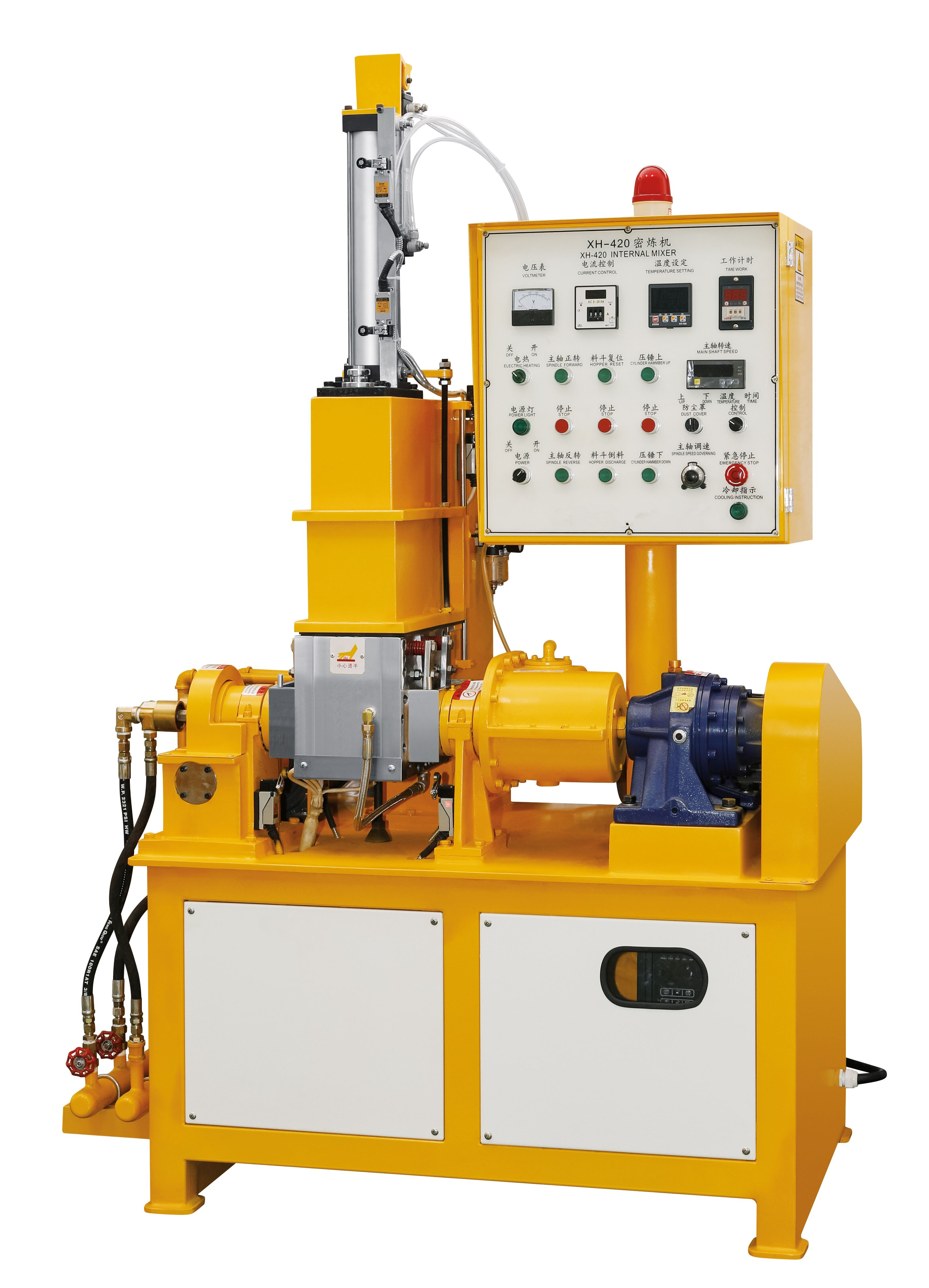

XH-420密炼机 XH-420 Lab Internal Mixer
简介：本机适用于塑料、橡胶、合成胶、热熔胶及各种低粘度物料等各式化学原料的搅拌、捏合、分散。
Introduction: This machine is suitable for mixing, kneading and dispersing of various chemical raw materials such as plastic, rubber, synthetic rubber, hot melt adhesive and low viscosity materials.
工作原理：由两支表面带螺旋棱角的搅叶轴，封闭在“W”形容室内，在一定压力与温度条件下，两轴做相对差速运转，使胶料搅拌分散。
Working principle: Two agitator shafts with spiral edges on the surface are enclosed in the 'W' chamber. Under certain pressure and temperature conditions, the two shafts are operated at a relatively different speed to stir and disperse the materials.
技术参数(Technical Parameters)：
|
型号 Model |
XH-420-1 |
XH-420-3 | XH-420-5 | XH-420-10 |
|
密炼总容积 Mixing volume |
1L |
3L | 5L | 10L |
|
控制方式 Control Mod |
按键控制或PLC触摸屏控制 （可选配）
Key Control/PLC Control (Optional) |
|||
|
卸料方式 Discharge method |
反转卸料或开合式
Reverse discharge or open close type |
|||
|
驱动电机功率 Drive motor |
3.7KW |
7.5KW | 11KW | 18.5KW |
|
翻转电机 Flip motor |
0.75kW |
|||
|
转子转速（前后） Rotor speed(front/rear) |
40/31r min（变频可调adjustable） |
35/28r min（变频可调adjustable） | ||
|
翻转角度 Flip angle |
110℃ |
|||
|
空气压力 Air pressure |
0.3-0.5mpa | |||
|
体积(H×W×D) Volume |
1800×900×1900 |
1900×1300×1500 | 1900×1300×1500 | 2100×1100×2300 |
|
重量(kg) Weigh |
850kgs |
1300kgs | 1500kgs | 1800kgs |
|
电源 Power Supply |
3∮，AC380V |
|||
特殊型号可根据客户要求设计制作。
Special models can be designed according to customers’ requirements.
